GELAX

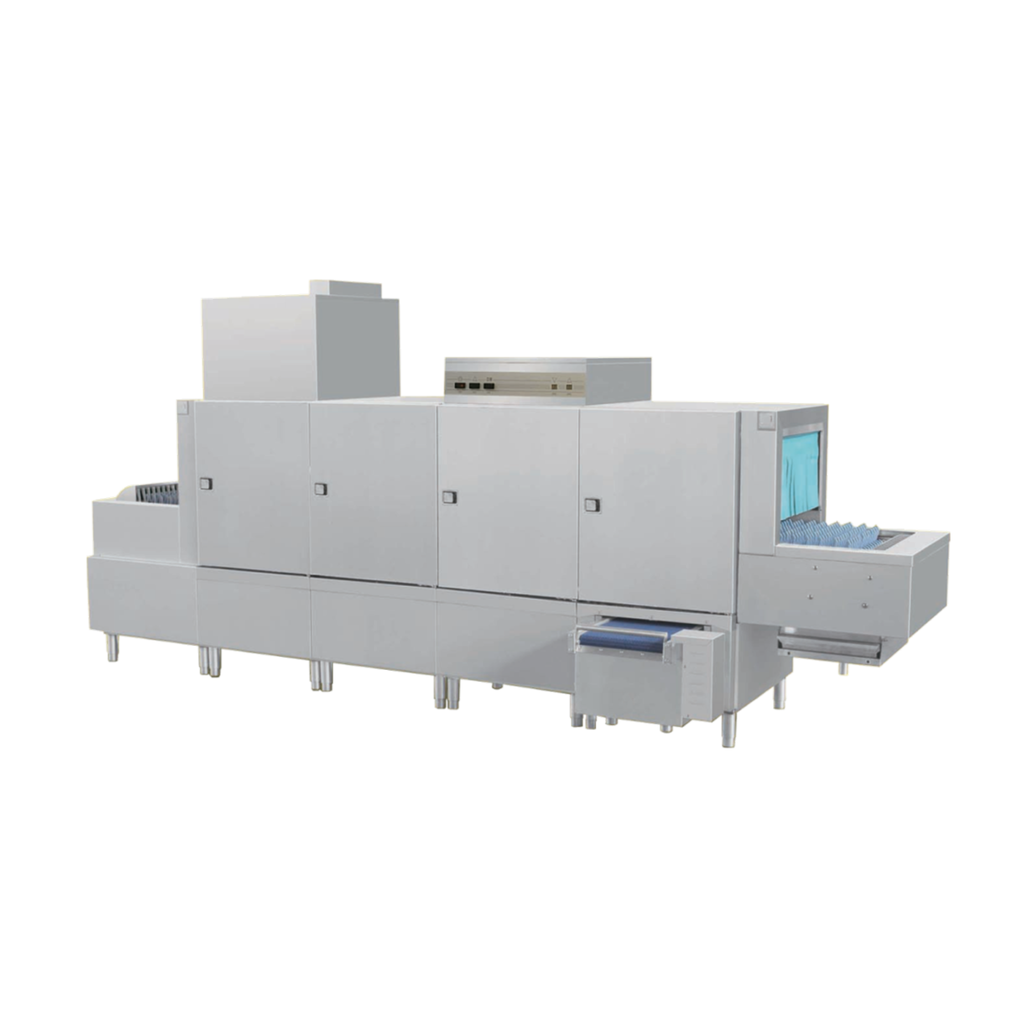

Flight-Type Dishwasher | ED Series
$0.00
Availability
Details
The ED Series Commercial Flight-Type Dishwasher is a modular, high-capacity warewashing system designed for hotels, hospitals, universities, central kitchens, food factories, and institutional catering operations. Built with a continuous flight conveyor system, the ED Series delivers efficient, rack-free dishwashing for large-scale foodservice environments.
Constructed from premium SUS304 food-grade stainless steel, the ED Series features a modular design that allows users to configure pre-wash, main wash, spray rinse, drying, and outlet modules according to operational requirements. Multiple tank configurations and optional drying modules provide the flexibility to meet different throughput and hygiene standards.
| Model | Configuration |
|---|---|
| ED-3600H | Single Tank |
| ED-3600HD | Single Tank + Drying |
| ED-4500H | Double Tank |
| ED-7000H | Triple Tank |
| ED-4950H | Single Tank + Double Drying |
Compare Models
| Feature | ED-3600H | ED-3600HD | ED-4500H | ED-7000H | ED-4950H |
|---|---|---|---|---|---|
| Single Wash Tank | ✓ | ✓ | — | — | ✓ |
| Double Wash Tank | — | — | ✓ | — | — |
| Triple Wash Tank | — | — | — | ✓ | — |
| Integrated Drying | — | ✓ | Optional | Optional | ✓✓ Double Drying |
| High-Volume Operation | ✓ | ✓ | ✓✓ | ✓✓✓ | ✓✓ |
| Best For | Standard Kitchens | Schools & Canteens | Hotels & Restaurants | Food Factories & Hospitals | Plastic Tray Applications |
| Specification | ED-3600H | ED-3600HD | ED-4500H | ED-7000H | ED-4950H |
|---|---|---|---|---|---|
| Dimensions (L × W × H) | 3550 × 888 × 1620 mm | 4250 × 888 × 1996 mm | 4950 × 888 × 1996 mm | 5650 × 888 × 1996 mm | 4950 × 888 × 1996 mm |
| Washing Capacity | 2,000–3,000 pcs/hr | 2,000–3,000 pcs/hr | 2,000–4,500 pcs/hr | 2,000–5,500 pcs/hr | 2,000–3,000 pcs/hr |
| Electric Power | 48 kW | 58 kW | 69 kW | 80 kW | 68 kW |

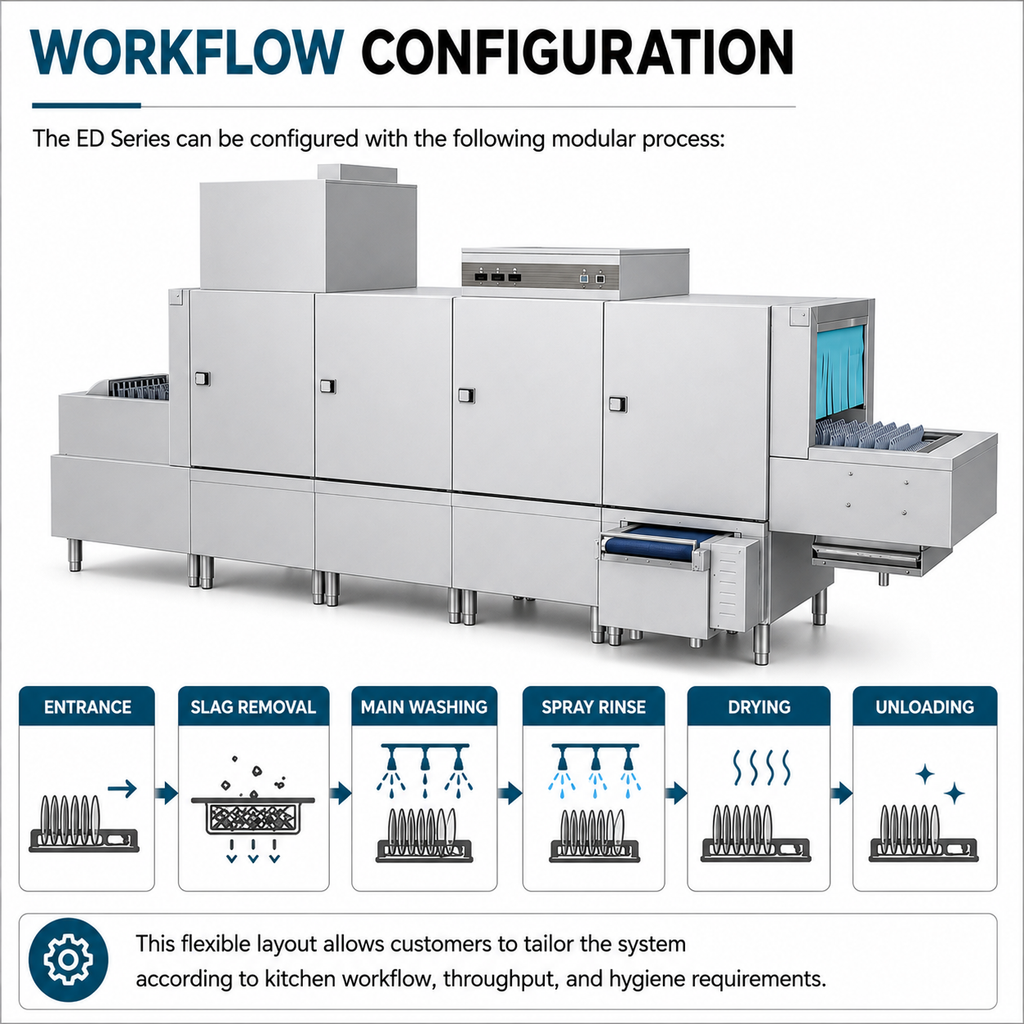

Workflow Configuration
The ED Series can be configured with the following modular process:
Entrance → Slag Removal → Main Washing → Spray Rinse → Drying → Outlet
This flexible layout allows customers to tailor the system according to kitchen workflow, throughput, and hygiene requirements.
Why Choose the ED Series?
- Fully modular flight-type dishwashing system
- Rack-free continuous conveyor operation
- Up to 5,500 pieces per hour
- Multiple tank configurations available
- Optional integrated drying modules
- Premium SUS304 stainless steel construction
- Flexible system customization
- Designed for 24/7 heavy-duty commercial operation
- Ideal for large-scale institutional kitchens
