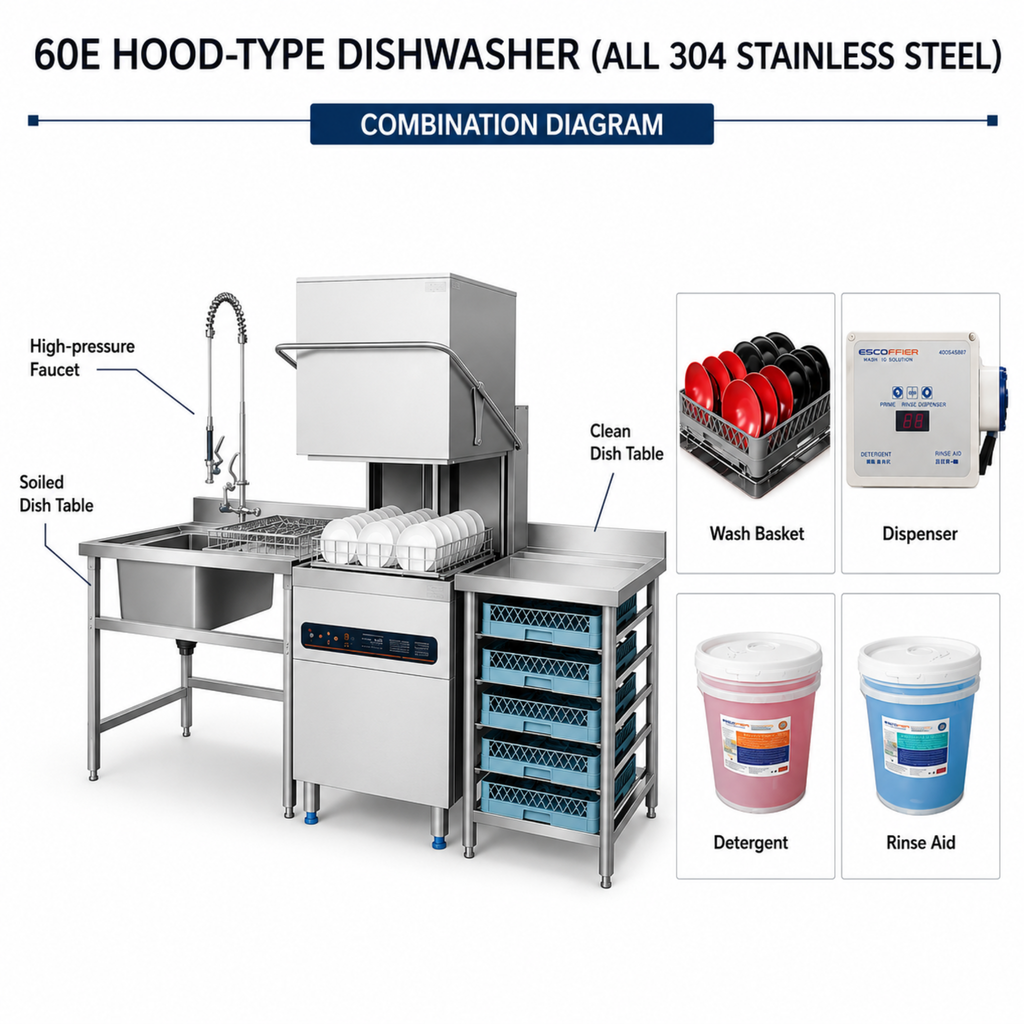

Hood-Type Dishwasher | 60E Series

$0.00

Models Standard PLC Touchscreen Wastewater Heat Recovery Steam Heat Recovery

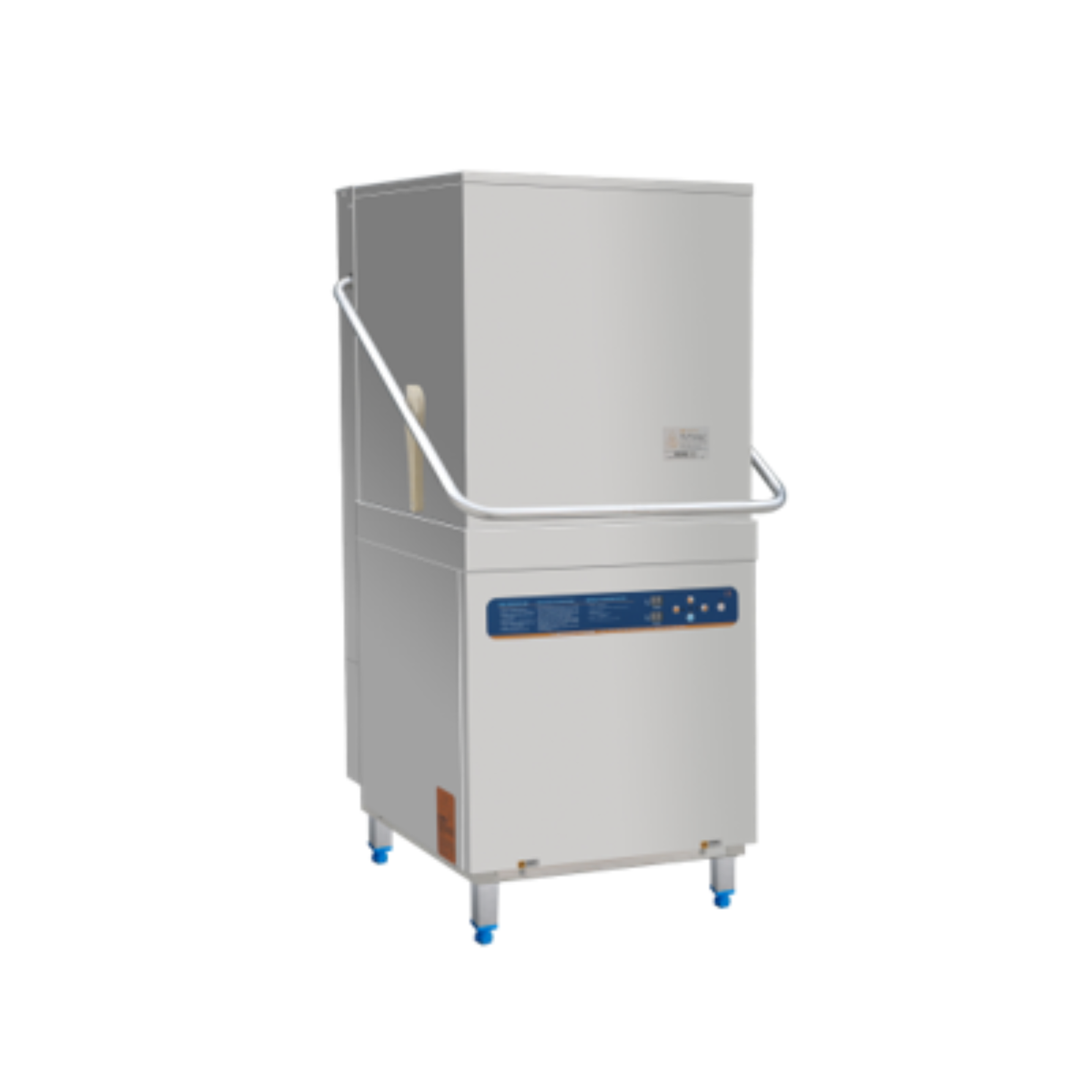

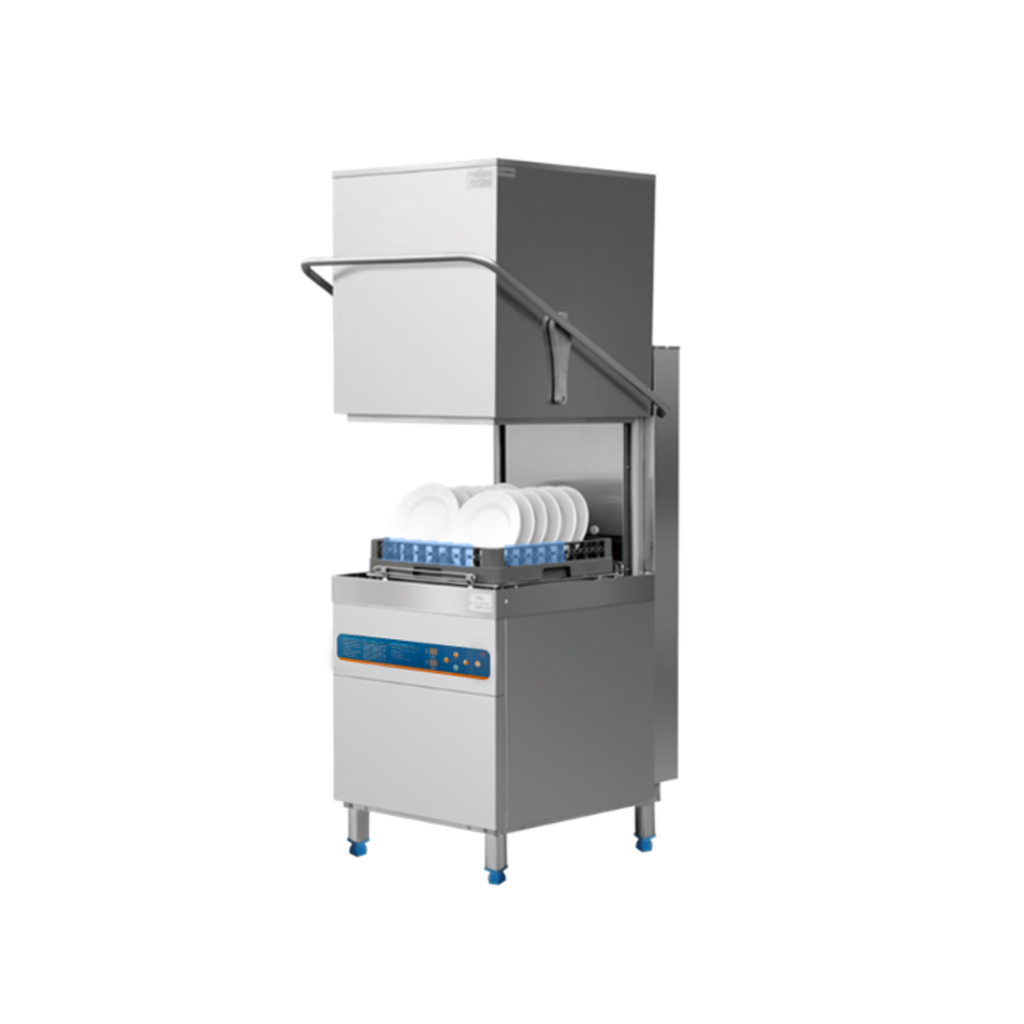

The 60E Series Commercial Hood-Type Dishwasher is engineered for high-volume commercial kitchens, delivering fast, hygienic, and energy-efficient dishwashing. Constructed entirely from food-grade SUS304 stainless steel, the machine features a durable hood-type design, touchscreen controls, and multiple wash cycle options to suit different levels of soiling.

Ideal for restaurants, hotels, central kitchens, hospitals, schools, food factories, and institutional kitchens.

Key Features

✔ Food-grade SUS304 stainless steel construction
✔ Large 500 × 500 mm basket capacity
✔ Up to 60 baskets per hour
✔ Three programmable wash cycles (60 / 90 / 120 seconds)

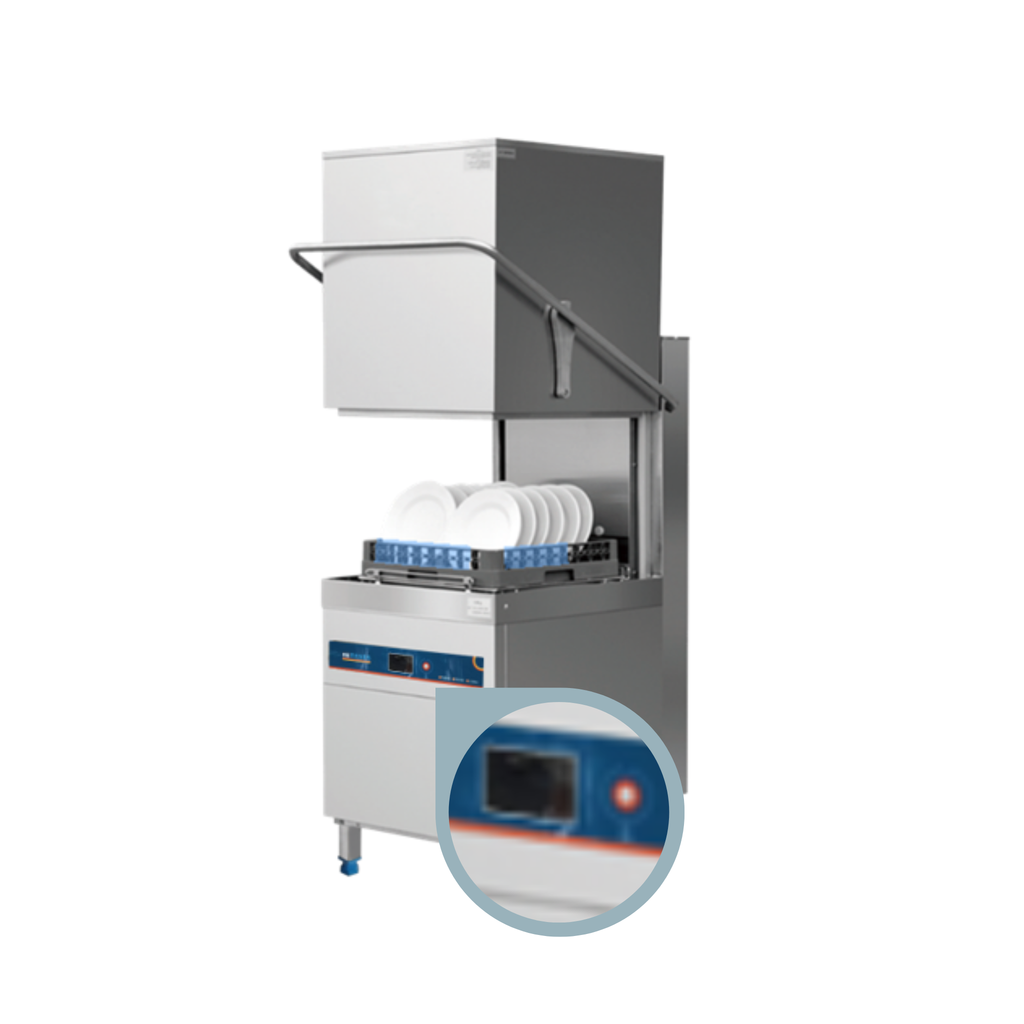

✔ Touchscreen PLC control panel
✔ Powerful upper and lower spray arms
✔ Low water consumption of only 2.5L per basket
✔ Easy-to-remove wash and rinse arms for cleaning
✔ One-piece deep-drawn wash tank with rounded corners
✔ Safety hood design minimizes hot water splashing
✔ Suitable for plates, bowls, trays, cutlery and kitchen utensils

Model Options

Models	Description
Standard	Mechanical control, standard hood-type dishwasher
PLC Touchscreen	Touchscreen control with full-feature PLC interface
Wastewater Heat Recovery	Energy-saving model that recovers heat from wastewater

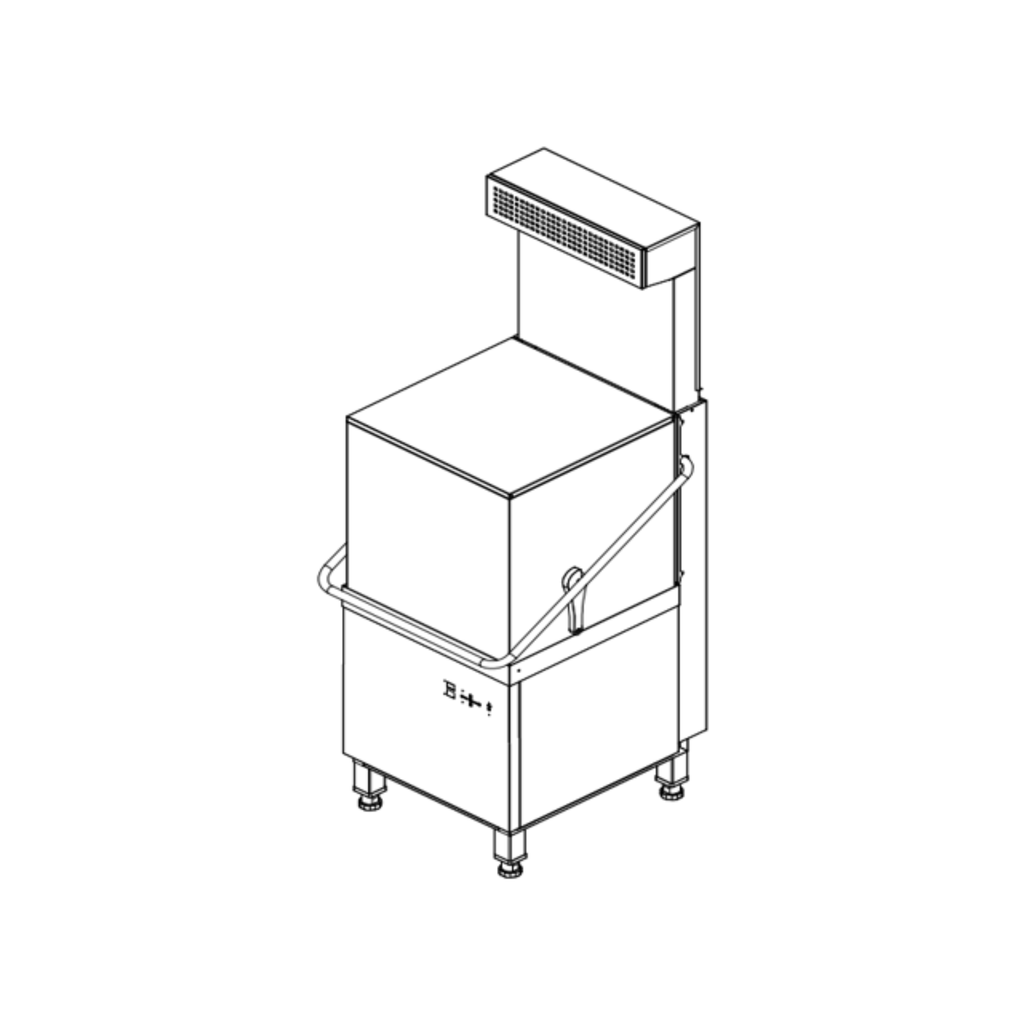

Steam Heat Recovery	Premium model that recovers heat from exhaust steam

Specifications

Specification	Standard	PLC Touchscreen	Wastewater Heat Recovery	Steam Heat Recovery
Construction	SUS304 Stainless Steel	SUS304 Stainless Steel	SUS304 Stainless Steel	SUS304 Stainless Steel
Control Panel	Mechanical Control	PLC Touchscreen	PLC Touchscreen	PLC Touchscreen
Heat Recovery	None	None	Wastewater Heat Recovery	Steam Heat Recovery
Maximum Washing Height	420 mm	420 mm	420 mm	420 mm
Basket Size	500 × 500 mm	500 × 500 mm	500 × 500 mm	500 × 500 mm
Washing Capacity	30 / 40 / 60 baskets/hr	30 / 40 / 60 baskets/hr	30 / 40 / 60 baskets/hr	30 / 40 / 60 baskets/hr
Wash Cycles	60 / 90 / 120 sec	60 / 90 / 120 sec	60 / 90 / 120 sec	60 / 90 / 120 sec
Water Consumption	2.5 L/basket	2.5 L/basket	2.5 L/basket	2.5 L/basket
Water Tank Capacity	26 L	26 L	26 L	26 L
Incoming Water Temperature	10–60°C	10–60°C	10–60°C	10–60°C
Cleaning Pump Power	0.71 kW	0.71 kW	0.71 kW	0.71 kW
Wash Tank Heating Power	3 kW	3 kW	3 kW	3 kW
Spray Heating Power	12 kW	12 kW	7.5 kW	12 kW
Total Power	15.8 kW	15.8 kW	11.3 kW	11.3 kW
Power Supply	380V / 50Hz / 3N	380V / 50Hz / 3N	380V / 50Hz / 3N	380V / 50Hz / 3N

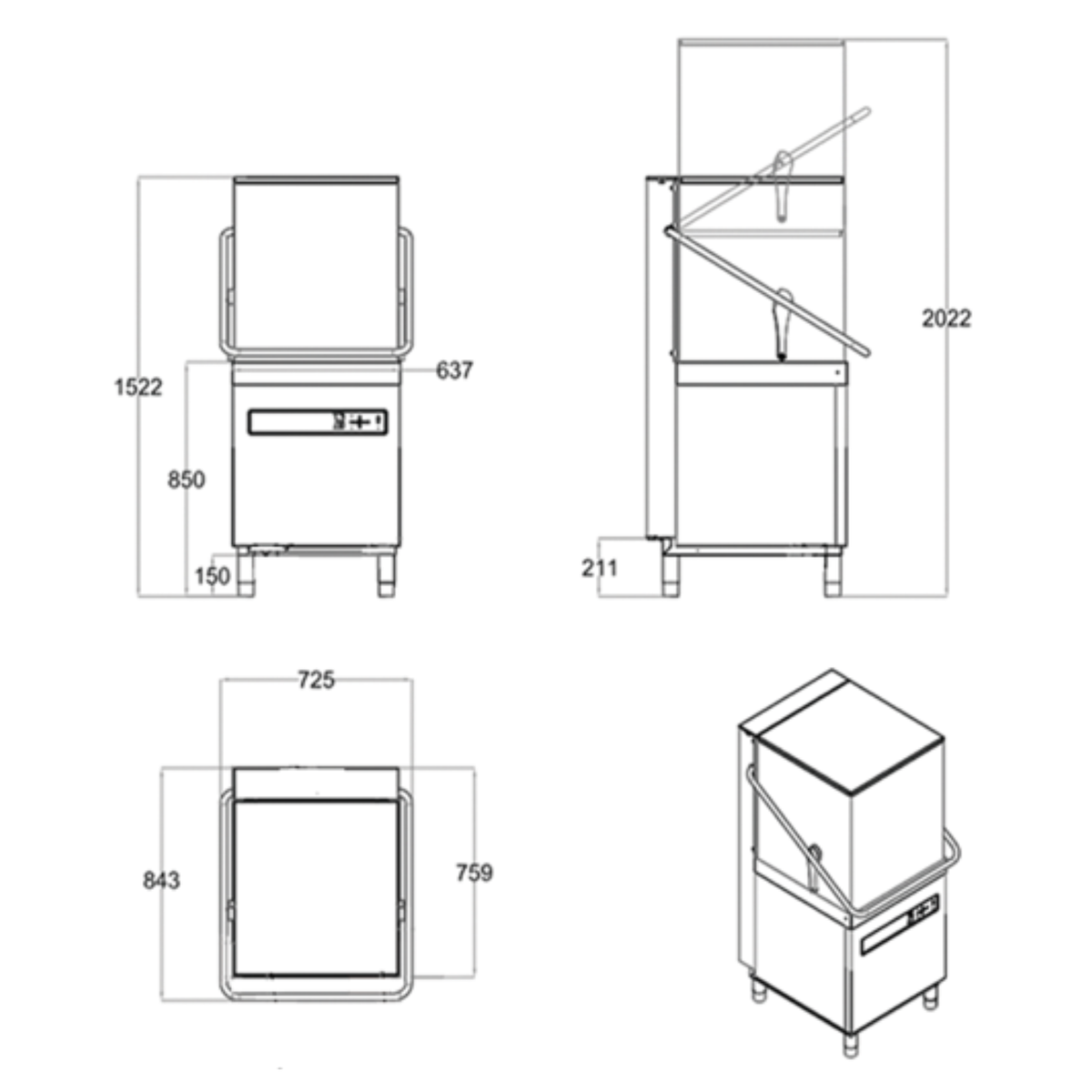

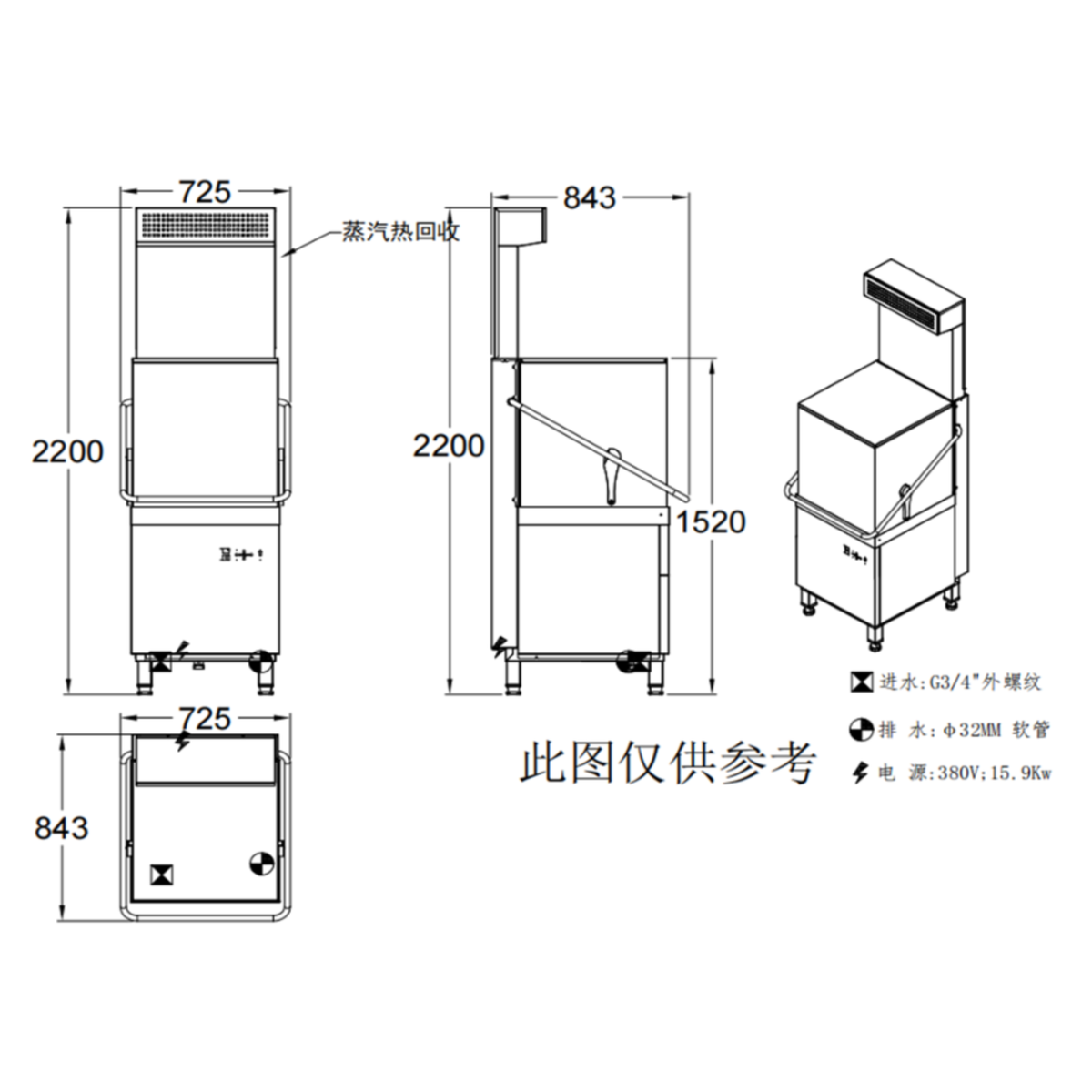

External Dimensions	725 × 843 × 1522 mm	725 × 843 × 1522 mm	725 × 843 × 1522 / 2022 mm	725 × 843 × 2200 mm
